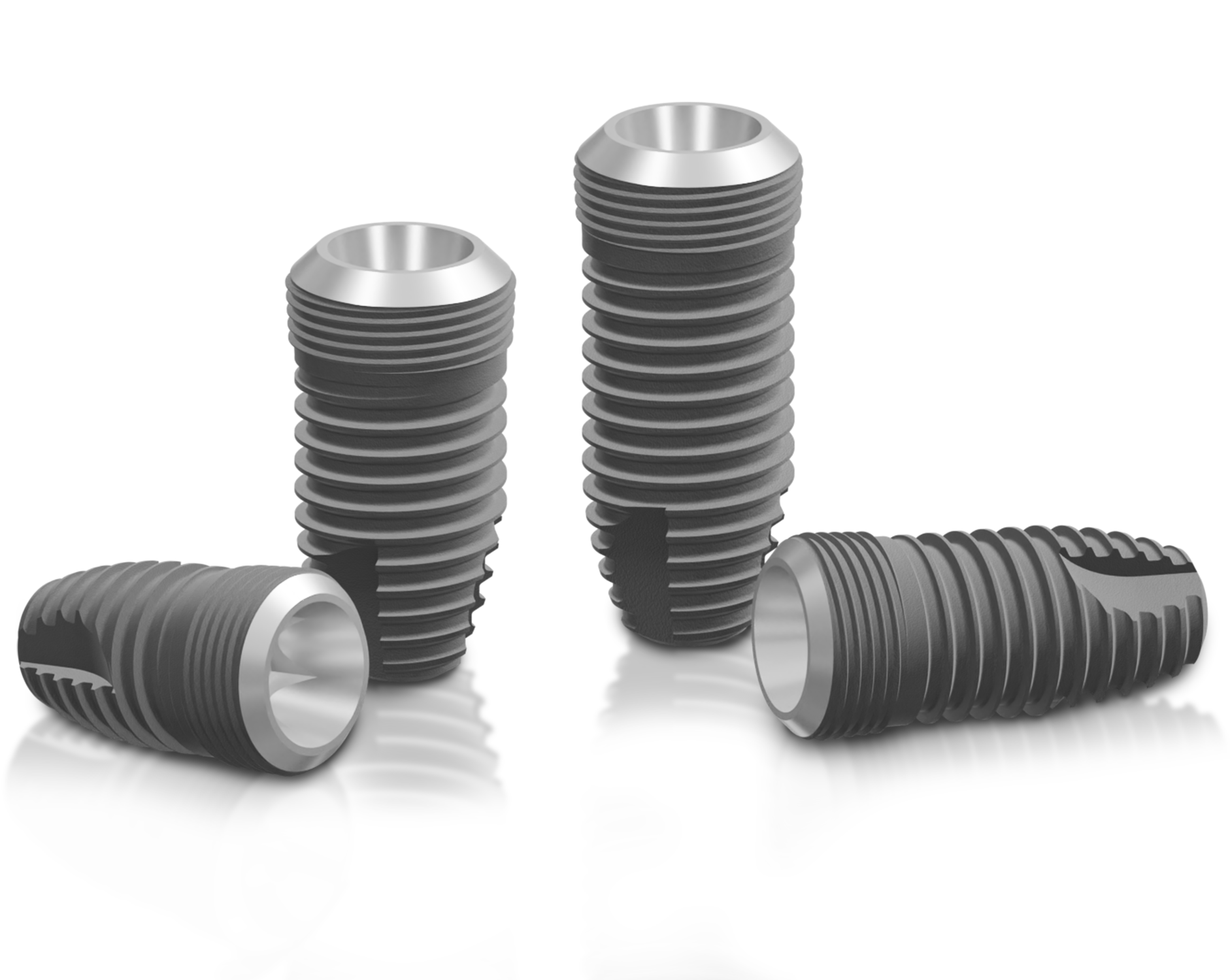

Implantium Logo

Developed by Clinicians for Clinicians

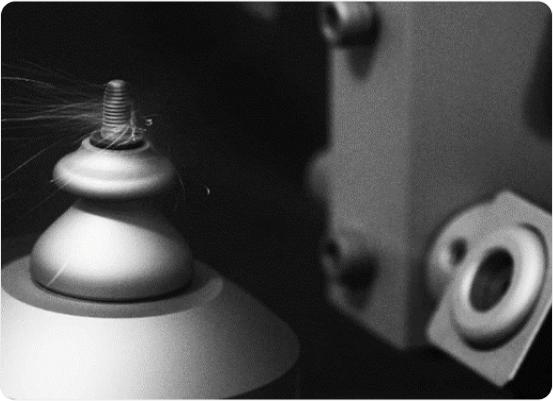

Material

Unalloyed Titanium ASTMF67
(Commercially pure titanium grade 4)

S.L.A. (Sandblasted with Large grits and Acid etched) Surface Treatment

Well documented and clinically proven surface technology.*

Optimal Fixation Threads

• Positive neck threads synchronized with implant body threads

• Initial stability between the cortical bone and fixture

Bevel Platform

The tapered bevel platform design may avoid bone profiling.

Platform-Switched Design

• The design may be beneficial in marginal bone preservation.*

3 Tapered Apical Cutting Flutes

• 3 blade self-tapping design

• Flat end

Uniform Prosthetic Platform

• Single connection across all diameters of implants
• One abutment screw fits all abutments and implant platforms
• One Hex screw driver fits all abutment screws
• All implant diameters share the same internal hex

Arrow Icon Green

Features

Simplicity through Sophistication

• One hex connection throughout the system.
• Cutting flutes length of implant for increased efficiency.
• Thread design.

S.L.A. Surface

(Sandblasting with large grits and acid etching)
Well documented and clinically proven surface technology.

Reference: Myron Nevins, et al., :”Clnical and Histologic Evaluations of SLA Dental implants” Int J Periodontics Restorative Dent 2017; 37:175-181. dol: 10.11607/prd.3131

Tactile Feel of Hex Connection

Hex interface increased.

Efficiency in All Bone Types

• Long cutting edge up to the implant neck.
• Aggressive threads design.

Implant-Abutment Connection

Increased abutment screw connection to implant internal threads.

3 Long Cutting Flutes from Apical to Coronal Aspect

• 3 blade self-tapping design minimizes bone compression trauma.
• Flat apical end prevents bone perforation risk.

Dentium Black Menu Close.
Arrow Icon Green
Arrow Icon Green

Technical Information

Connection

• Internal Hex
• Connical

Platform Diameters
• 3.6mm
• 4.0mm
• 4.5mm
• 5.0mm
• 6.0mm
• 7.0mm
Body Diameters

• 3.6mm
• 4.0mm
• 4.5mm
• 5.0mm
• 5.0mm
• 5.8mm

Lengths

• 8mm
• 10mm
• 12mm
• 14mm

Material

Ti-G4

Drilling Sequences

Platform: Ø3.6 / Body: Ø3.4

(1000rpm / 30~45N-cm)

Platform: Ø4.0 / Body: Ø3.8

(1000rpm / 30~45N-cm)

Platform: Ø4.5 / Body: Ø4.3

(1000rpm / 30~45N-cm)

Platform: Ø5.0 / Body: Ø4.8

(1000rpm / 30~45N-cm)

Platform: Ø6.0 / Body: Ø4.8

(1000rpm / 30~45N-cm)

Platform: Ø7.0 / Body: Ø5.8

(1000rpm / 30~45N-cm)

Dentium Black Menu Close.
Arrow Icon Green

Citation

Myron Nevins et al. :”Clinical and Histologic Evaluations of SLA Dental implants”

The International Journal of Periodontics & Restorative Dentistry

2017 37:175-181. doi: 10.11607/prd.3131

Read Article

The biocompatibility of SLA-treated titanium implants. Biomed. Mater.

3(2008) 025011 (6ppp)

Read Article

Clinical and Histologic Evaluations of Immediately Placed SLA Dental Implants

The International Journal of Periodontics & Restorative Dentistry

2018;38:165-170. Doi: 10.11607 / prd.3558

Read Article

Clinical and Histologic Evaluation of SLA Dental Implants.

2017;37:175-181. Doi: 10.11607 / prd.3531

Read Article

Effects of Implant Morphology on rotational Stability during immediate implant placement in the Esthetic Zone.

The International Journal of Oral & Maxillofacial Implants.

May/June 2015, 30(3):667-670 2015 DOI: 10.11607/jomi.3885

Read Article

A prospective, 1 year observational study of double-threaded tapered body dental implants with immediate loading.

The Journal of Prosthetic Dentistry.

July 2015, Volume 114, Issue 1, Pages 46-51

Read Article

Comparison of Clinical and Radiographic Outcomes of Platform-Switched Implants with a Rough Collar and Platform-Matched Implants with a Smooth Collar: A 1-Year Randomized Clinical Trial.

Int J Oral Maxillofac Implants

2016;31:382-390. Doi: 10.11607/jomi.4189

Read Article
Arrow Icon Green

Features

Simplicity through Sophistication

• One hex connection throughout the system.
• Cutting flutes length of implant for increased efficiency.
• Thread design.

S.L.A. Surface

(Sandblasting with large grits and acid etching)
Well documented and clinically proven surface technology.

Reference: Myron Nevins, et al., :”Clnical and Histologic Evaluations of SLA Dental implants” Int J Periodontics Restorative Dent 2017; 37:175-181. dol: 10.11607/prd.3131

Optimal Fixation Threads

• Positive neck threads synchronized with implant body threads
• Initial stability & maximum sealing between the cortical bone and fixture
• Optimal fixation threads reduce stress of marginal cortical bone and minimize marginal bone loss.

Bevel Platform

The tapered bevel platform design may avoid bone profiling.

Biological Thread

• Tread platform design creates excellent bone to implant contact.
• Thread engage and penetrate bone with ease.

Tapered Apical 3 Cutting Flutes

• 3 blade self-tapping design minimizes bone destruction trauma.
• The flat end reduces prevents bone perforation risk.

Dentium Black Menu Close.
Arrow Icon Green
Arrow Icon Green

Technical Information

Connection

• Internal Hex
• Connical

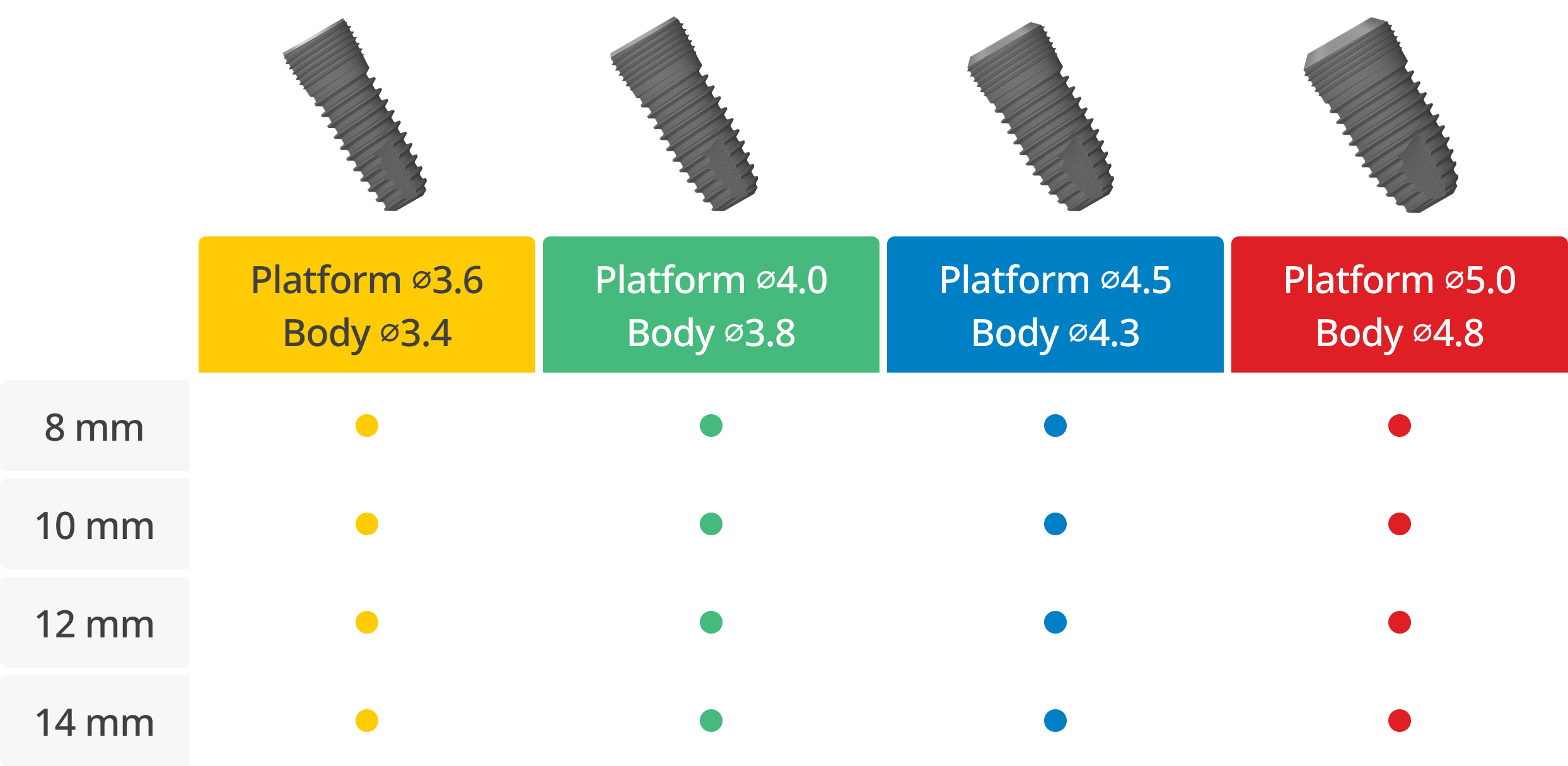

Platform Diameters
• 3.6mm
• 4.0mm
• 4.5mm
• 5.0mm
Body Diameters

• 3.4mm
• 3.8mm
• 4.3mm
• 4.8mm

Lengths

• 8mm
• 10mm
• 12mm
• 14mm

Material

Ti-G4

Drilling Sequences

Platform: Ø3.6 / Body: Ø3.4

(1000rpm / 30~45N-cm)

Platform: Ø4.0 / Body: Ø3.8

(1000rpm / 30~45N-cm)

Platform: Ø4.5 / Body: Ø4.3

(1000rpm / 30~45N-cm)

Platform: Ø5.0 / Body: Ø4.8

(1000rpm / 30~45N-cm)
