PRODUCT INFORMATION
S.L.A. surface treatment (sandblasted and acid-etched) enhances osseointegration and long-term stability.
PRODUCT INFORMATION
Commercially pure titanium Grade 4.
PRODUCT INFORMATION

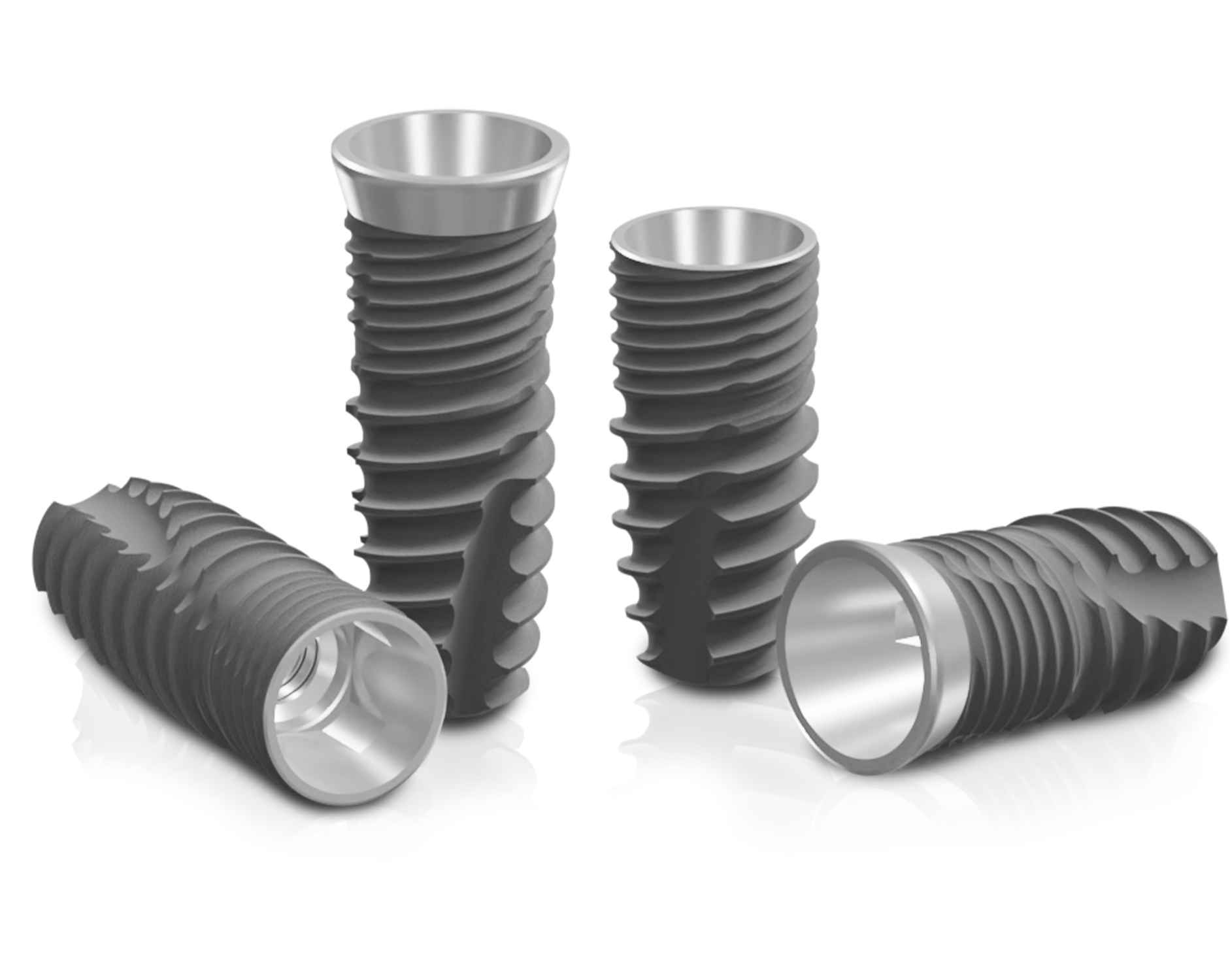

Ø3.1 mm body diameter for narrow ridges.
Available platforms Ø3.2 mm & Ø 3.6 mm
UNIFORM PROSTHETIC PLATFORM

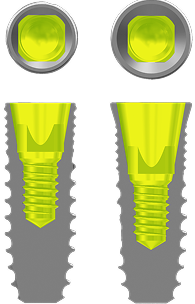

All NR Line diameter share the same conical connection and an internal square index.
One abutment screw fits all abutment and implant platform
Easy and fast insertion can be done due to the double-threaded straight body design.
Internal 10° conical connection between implant and abutment interface allows tight sealing
A 3-blade self-tapping design with a flat apical end ensures efficient cutting and placement across all bone types.
• One hex connection throughout the system.
• Cutting flutes length of implant for increased efficiency.
• Thread design.
(Sandblasting with large grits and acid etching)
Well documented and clinically proven surface technology.
Reference: Myron Nevins, et al., :”Clnical and Histologic Evaluations of SLA Dental implants” Int J Periodontics Restorative Dent 2017; 37:175-181. dol: 10.11607/prd.3131
Hex interface increased.
• Long cutting edge up to the implant neck.
• Aggressive threads design.
Increased abutment screw connection to implant internal threads.
• 3 blade self-tapping design minimizes bone compression trauma.
• Flat apical end prevents bone perforation risk.
• Internal Hex
• Connical
• 3.6mm
• 4.0mm
• 4.5mm
• 5.0mm
• 5.0mm
• 5.8mm
• 8mm
• 10mm
• 12mm
• 14mm
Ti-G4
Platform: Ø3.6 / Body: Ø3.4
(1000rpm / 30~45N-cm)
Platform: Ø4.0 / Body: Ø3.8
(1000rpm / 30~45N-cm)
Platform: Ø4.5 / Body: Ø4.3
(1000rpm / 30~45N-cm)
Platform: Ø5.0 / Body: Ø4.8
(1000rpm / 30~45N-cm)
Platform: Ø6.0 / Body: Ø4.8
(1000rpm / 30~45N-cm)
Platform: Ø7.0 / Body: Ø5.8
(1000rpm / 30~45N-cm)
Myron Nevins et al. :”Clinical and Histologic Evaluations of SLA Dental implants”
The International Journal of Periodontics & Restorative Dentistry
2017 37:175-181. doi: 10.11607/prd.3131
The biocompatibility of SLA-treated titanium implants. Biomed. Mater.
3(2008) 025011 (6ppp)
Clinical and Histologic Evaluations of Immediately Placed SLA Dental Implants
The International Journal of Periodontics & Restorative Dentistry
2018;38:165-170. Doi: 10.11607 / prd.3558
Clinical and Histologic Evaluation of SLA Dental Implants.
2017;37:175-181. Doi: 10.11607 / prd.3531
Effects of Implant Morphology on rotational Stability during immediate implant placement in the Esthetic Zone.
The International Journal of Oral & Maxillofacial Implants.
May/June 2015, 30(3):667-670 2015 DOI: 10.11607/jomi.3885
A prospective, 1 year observational study of double-threaded tapered body dental implants with immediate loading.
The Journal of Prosthetic Dentistry.
July 2015, Volume 114, Issue 1, Pages 46-51
Comparison of Clinical and Radiographic Outcomes of Platform-Switched Implants with a Rough Collar and Platform-Matched Implants with a Smooth Collar: A 1-Year Randomized Clinical Trial.
Int J Oral Maxillofac Implants
2016;31:382-390. Doi: 10.11607/jomi.4189
Have questions or need more details?
Download our catalog for detailed information or contact us.
Unalloyed Titanium ASTMF67
(Commercially pure titanium grade 4)
• Ø3.1mm body diameter for narrow ridges.
• Available in two platforms (Ø3.2mm & Ø 3.6mm)
Well documented and clinically proven surface technology.*
• Easy and fast insertion can be done due to the double-threaded straight body design
• Internal 10° conical connection between implant and abutment interface allows tight sealing
• Square index
• The design may be beneficial in marginal bone preservation.*
• 3 blade self-tapping design
• Flat apical end
• Efficiency in all bone types
• Single connection across all diameters of implants with a variety of prosthesis
• Efficiency through Simplicity / Simplicity through sophistication
• One abutment screw fits all abutments and implant platform
• One square screwdriver fits all abutment screws
• All implants share the same 10° conical connection
• All implants share the same square shape indexation.
• One hex connection throughout the system.
• Cutting flutes length of implant for increased efficiency.
• Thread design.
(Sandblasting with large grits and acid etching)
Well documented and clinically proven surface technology.
Reference: Myron Nevins, et al., :”Clnical and Histologic Evaluations of SLA Dental implants” Int J Periodontics Restorative Dent 2017; 37:175-181. dol: 10.11607/prd.3131
Hex interface increased.
• Long cutting edge up to the implant neck.
• Aggressive threads design.
Increased abutment screw connection to implant internal threads.
• 3 blade self-tapping design minimizes bone compression trauma.
• Flat apical end prevents bone perforation risk.
• Internal Hex
• Connical
• 3.6mm
• 4.0mm
• 4.5mm
• 5.0mm
• 5.0mm
• 5.8mm
• 8mm
• 10mm
• 12mm
• 14mm
Ti-G4
Platform: Ø3.6 / Body: Ø3.4
(1000rpm / 30~45N-cm)
Platform: Ø4.0 / Body: Ø3.8
(1000rpm / 30~45N-cm)
Platform: Ø4.5 / Body: Ø4.3
(1000rpm / 30~45N-cm)
Platform: Ø5.0 / Body: Ø4.8
(1000rpm / 30~45N-cm)
Platform: Ø6.0 / Body: Ø4.8
(1000rpm / 30~45N-cm)
Platform: Ø7.0 / Body: Ø5.8
(1000rpm / 30~45N-cm)
Myron Nevins et al. :”Clinical and Histologic Evaluations of SLA Dental implants”
The International Journal of Periodontics & Restorative Dentistry
2017 37:175-181. doi: 10.11607/prd.3131
The biocompatibility of SLA-treated titanium implants. Biomed. Mater.
3(2008) 025011 (6ppp)
Clinical and Histologic Evaluations of Immediately Placed SLA Dental Implants
The International Journal of Periodontics & Restorative Dentistry
2018;38:165-170. Doi: 10.11607 / prd.3558
Clinical and Histologic Evaluation of SLA Dental Implants.
2017;37:175-181. Doi: 10.11607 / prd.3531
Effects of Implant Morphology on rotational Stability during immediate implant placement in the Esthetic Zone.
The International Journal of Oral & Maxillofacial Implants.
May/June 2015, 30(3):667-670 2015 DOI: 10.11607/jomi.3885
A prospective, 1 year observational study of double-threaded tapered body dental implants with immediate loading.
The Journal of Prosthetic Dentistry.
July 2015, Volume 114, Issue 1, Pages 46-51
Comparison of Clinical and Radiographic Outcomes of Platform-Switched Implants with a Rough Collar and Platform-Matched Implants with a Smooth Collar: A 1-Year Randomized Clinical Trial.
Int J Oral Maxillofac Implants
2016;31:382-390. Doi: 10.11607/jomi.4189
• Ø1.9mm hole size for abutment screw.
(Sandblasting with large grits and acid etching)
Well documented and clinically proven surface technology.
Reference: Myron Nevins, et al., :”Clnical and Histologic Evaluations of SLA Dental implants” Int J Periodontics Restorative Dent 2017; 37:175-181. dol: 10.11607/prd.3131
• The design may be beneficial in marginal bone preservation.*
• Ø3.1mm body diameter for narrow ridges.
• Available in two platforms (Ø3.2mm & Ø 3.6mm)
• Easy and fast insertion may be achieved thanks to the double-threaded tapered body design.
• 3 blade self-tapping design minimizes bone compression trauma.
• Flat apical end prevents bone perforation risk.
• Square / Round
• Connical
• 3.1mm
• 9mm
• 10mm
• 11mm
Ti-G4

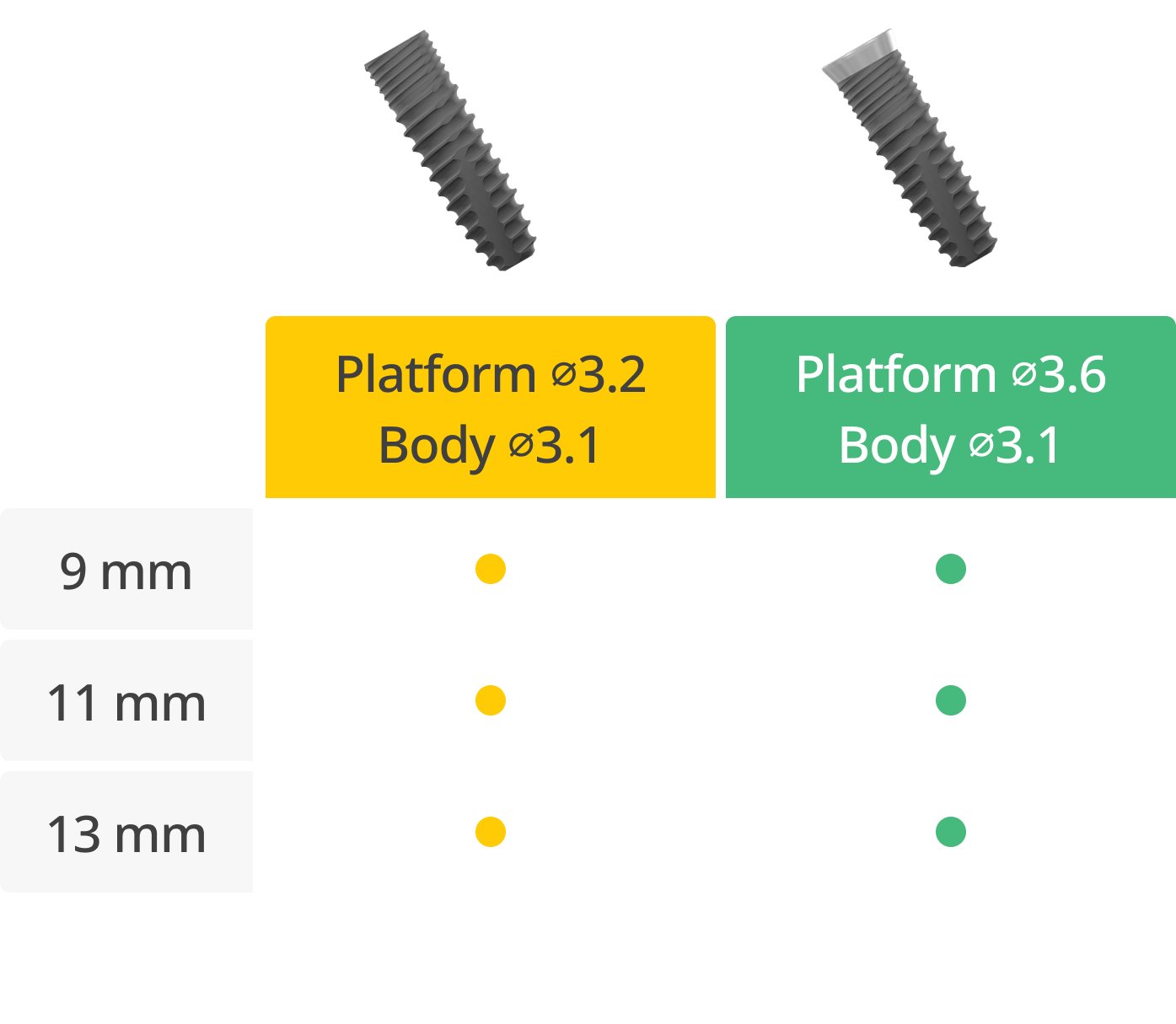

Platform: Ø3.2 / Body: Ø3.1
(800~1,200rpm / 30~45N-cm)
Platform: Ø3.6 / Body: Ø3.1
(800~1,200rpm / 30~45N-cm)
It is recommended to place the implant 0.5mm below the crestal bone line to prevent implant body exposure from natural bone loss.
• Use the depth gauge to measure the depth of the osteotomy.
