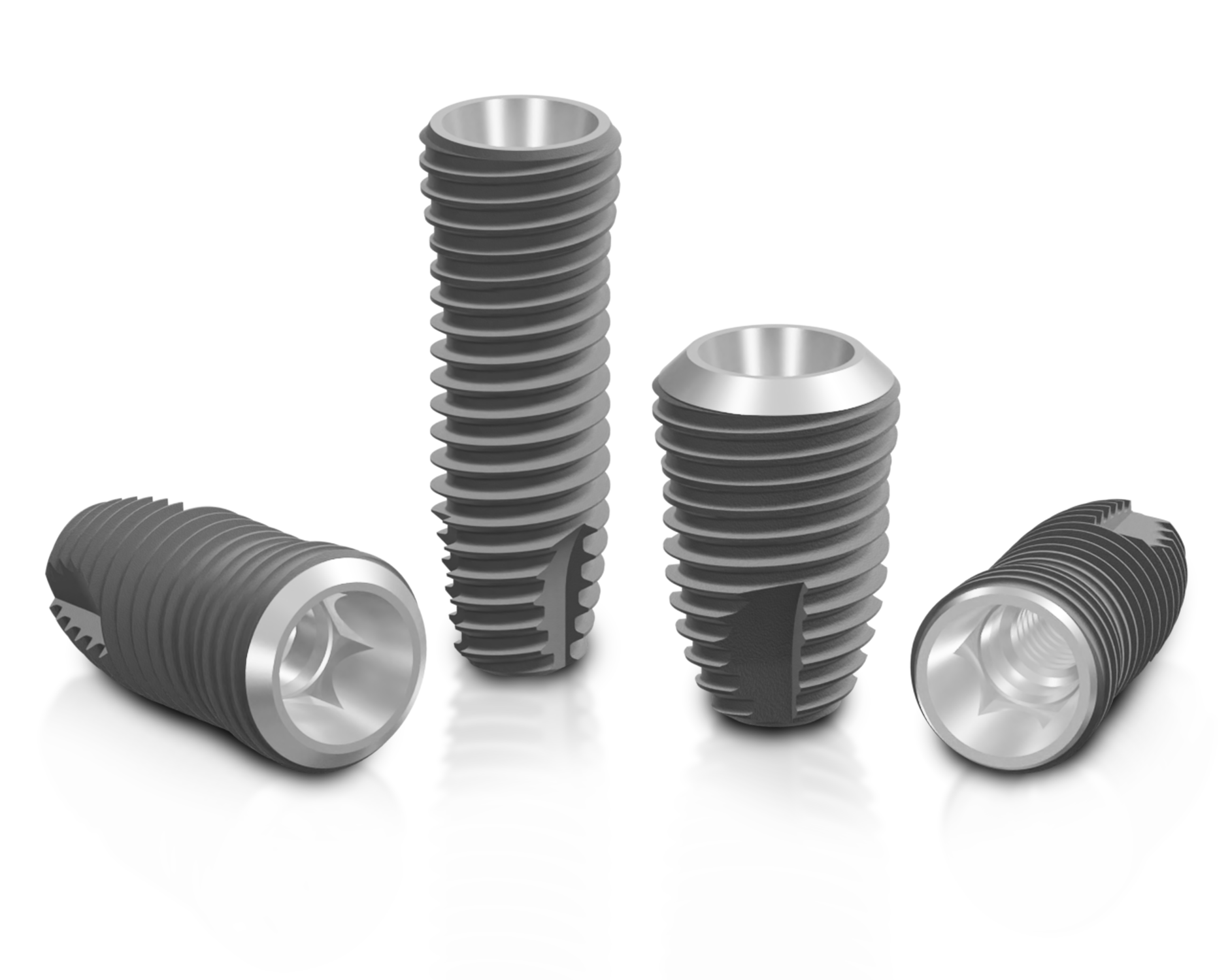

SuperLine Implants

PRODUCT INFORMATION

Clinically Proven Surface Technology

S.L.A. surface treatment (sandblasted and acid-etched) enhances osseointegration and long-term stability.

PRODUCT INFORMATION

Unalloyed Titanium ATMF67

Commercially pure titanium Grade 4.
Proudly manufactured in the USA, adhering to the highest standards and reflecting a commitment to superior quality.

UNIFORM PROSTHETIC PLATFORM

Single Connection across all diameter

Commercially pure titanium Grade 4.
Proudly manufactured in the USA, adhering to the highest standards and reflecting a commitment to superior quality.

UNIFORM PROSTHETIC PLATFORM

Interchangeable Abutments

Seamlessly use any abutments with any implant diameter across the three implant systems.
Streamline your implant restorative procedure and enhance efficiency.
Simplify your inventory and optimize cost-effectiveness.

Implant Design Highlight

Double-Threaded, Tapered Body Design

Easy and fast insertion can be accomplished due to the double-threaded tapered body design.

3 Tapered Apical Cutting Flutes

Features 3 tapered apical cutting flutes, a 3-blade self-tapping design, and a flat end for enhanced precision and control.

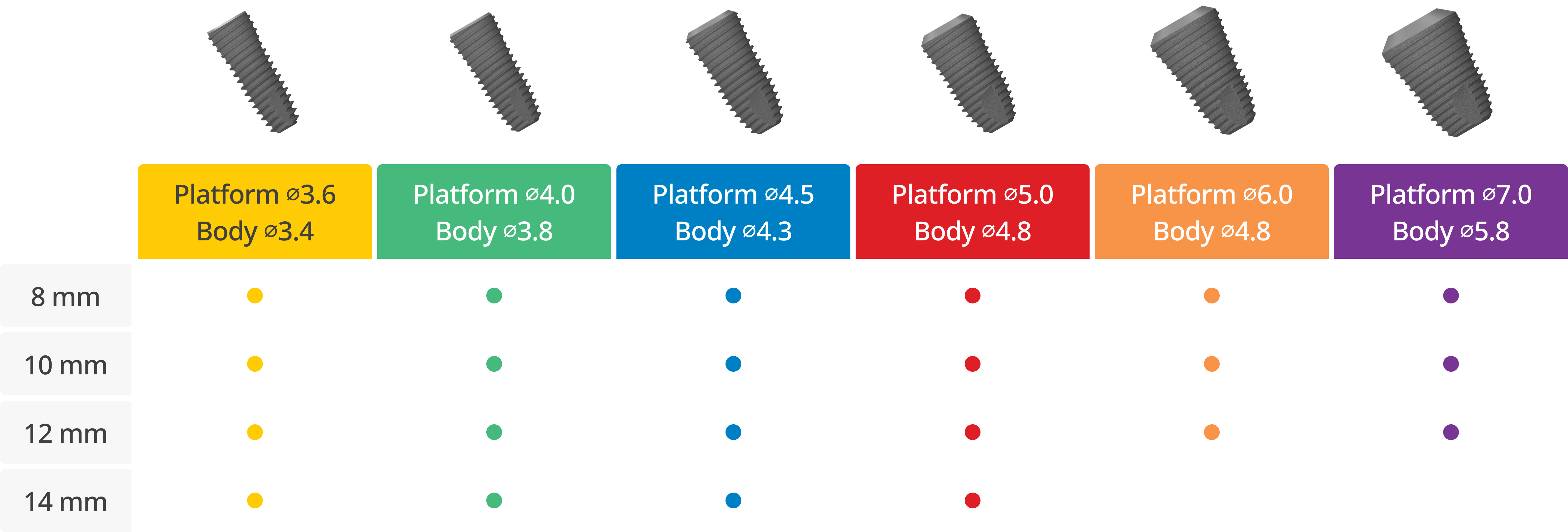

Available Dimension

Clinical Case

Preoperative Radiography

Implantation (FX4010SWC, FX4008SWC)

Grafting with Osteon II

After 4 months of healing

Final Prosthesis

1 year and 6 months follow-up

Features

Technical Information

Citation

Have questions or need more details?
Download our catalog for detailed information or contact us.

View Catalog Contact Us

Material

Unalloyed Titanium ASTMF67
(Commercially pure titanium grade 4)

S.L.A. (Sandblasted with Large grits and Acid etched) Surface Treatment

Well documented and clinically proven surface technology.*

Double-Threaded, Tapered Body Design

• Easy and fast insertion may be achieved thanks to the double-threaded tapered body design.

Platform-Switched Design

• The design may be beneficial in marginal bone preservation.*
• Coronal bevel edge may facilitate more soft tissue or bone growth
• Milled bevel edge, not polished

3 Tapered Apical Cutting Flutes

• 3 blade self-tapping design
‍
• Flat end
‍

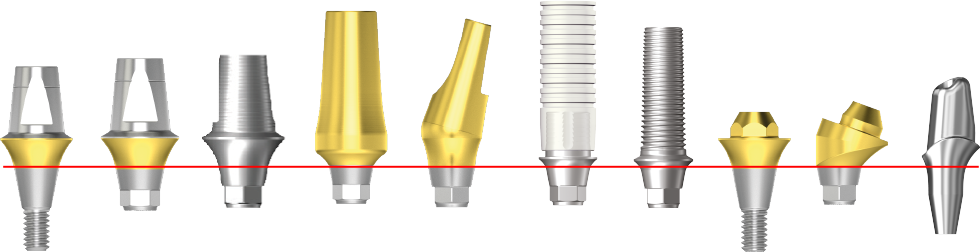

Single Prosthetic Platform

• Single connection across all diameters of implants
• One abutment screw fits all abutments and implant platforms
• One Hex screw driver fits all abutment screws
• All implant diameters share the same internal hex
• Gold-hue Tissue contour abutments

Features

Simplicity through Sophistication

• One hex connection throughout the system.
• Cutting flutes length of implant for increased efficiency.
• Thread design.

S.L.A. Surface

(Sandblasting with large grits and acid etching)
Well documented and clinically proven surface technology.

Reference: Myron Nevins, et al., :”Clnical and Histologic Evaluations of SLA Dental implants” Int J Periodontics Restorative Dent 2017; 37:175-181. dol: 10.11607/prd.3131

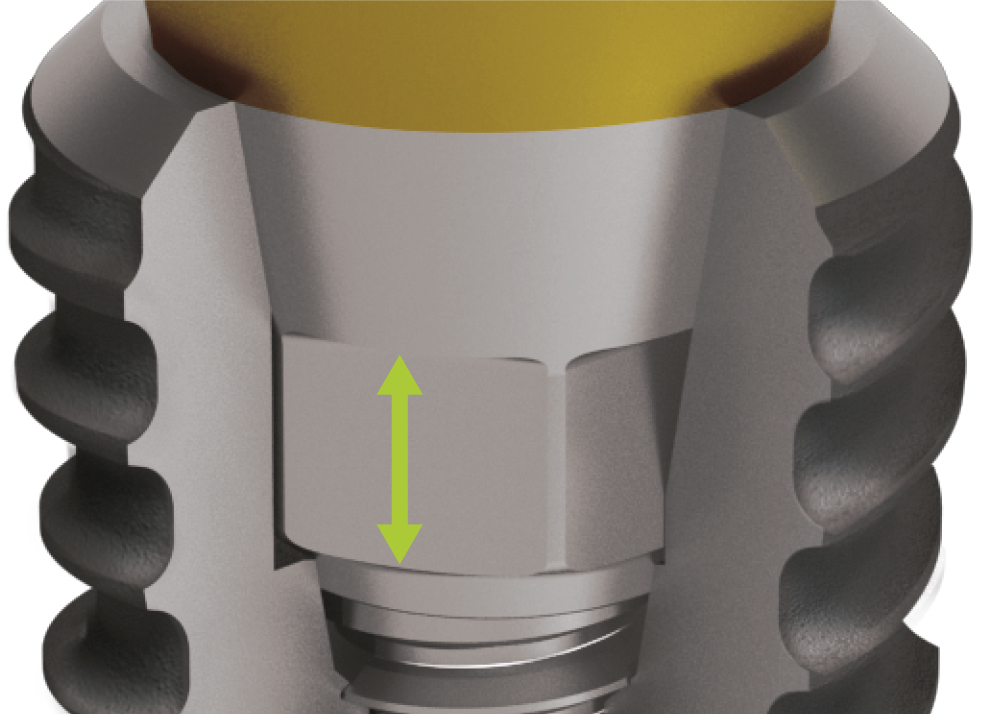

Tactile Feel of Hex Connection

Hex interface increased.

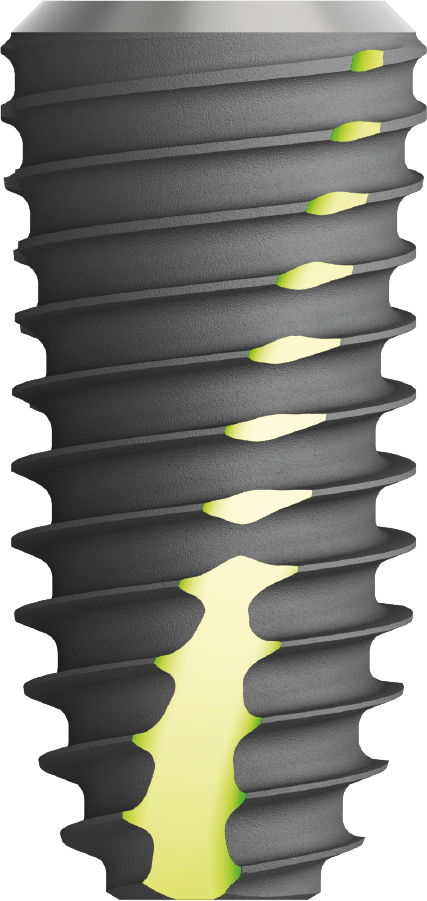

Efficiency in All Bone Types

• Long cutting edge up to the implant neck.
• Aggressive threads design.

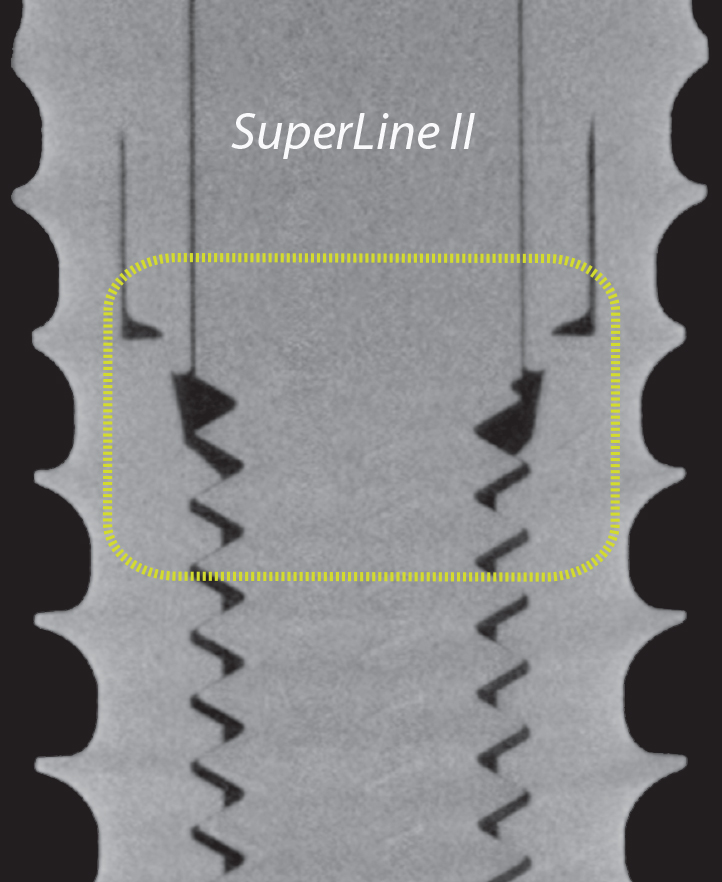

Implant-Abutment Connection

Increased abutment screw connection to implant internal threads.

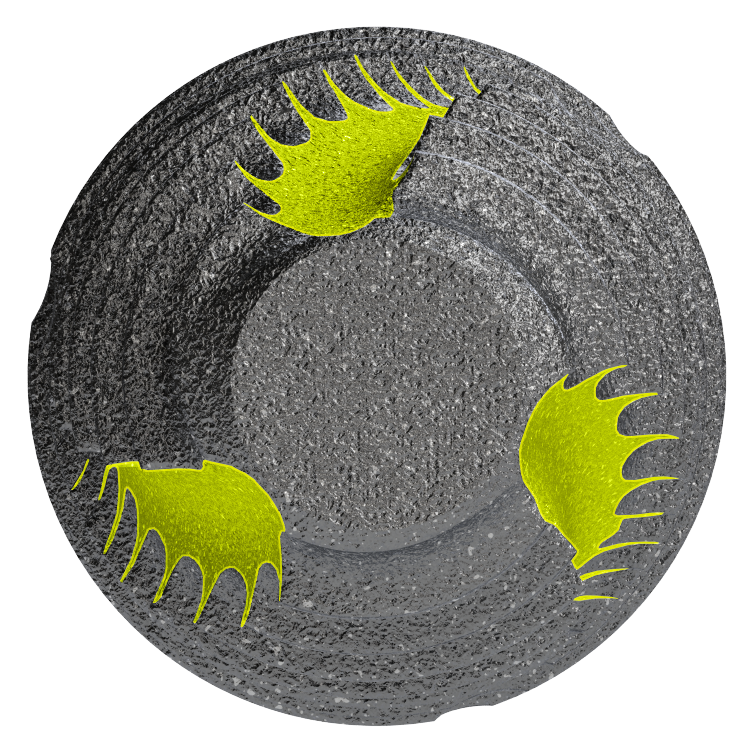

3 Long Cutting Flutes from Apical to Coronal Aspect

• 3 blade self-tapping design minimizes bone compression trauma.
• Flat apical end prevents bone perforation risk.

Technical Information

Connection

• Internal Hex
• Connical

Platform Diameters

• 3.6mm

• 4.0mm

• 4.5mm

• 5.0mm

• 6.0mm

• 7.0mm

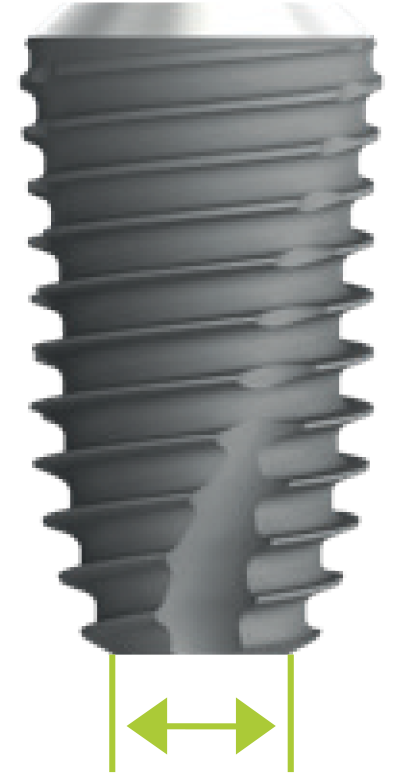

Body Diameters

• 3.6mm
• 4.0mm
• 4.5mm
• 5.0mm
• 5.0mm
• 5.8mm

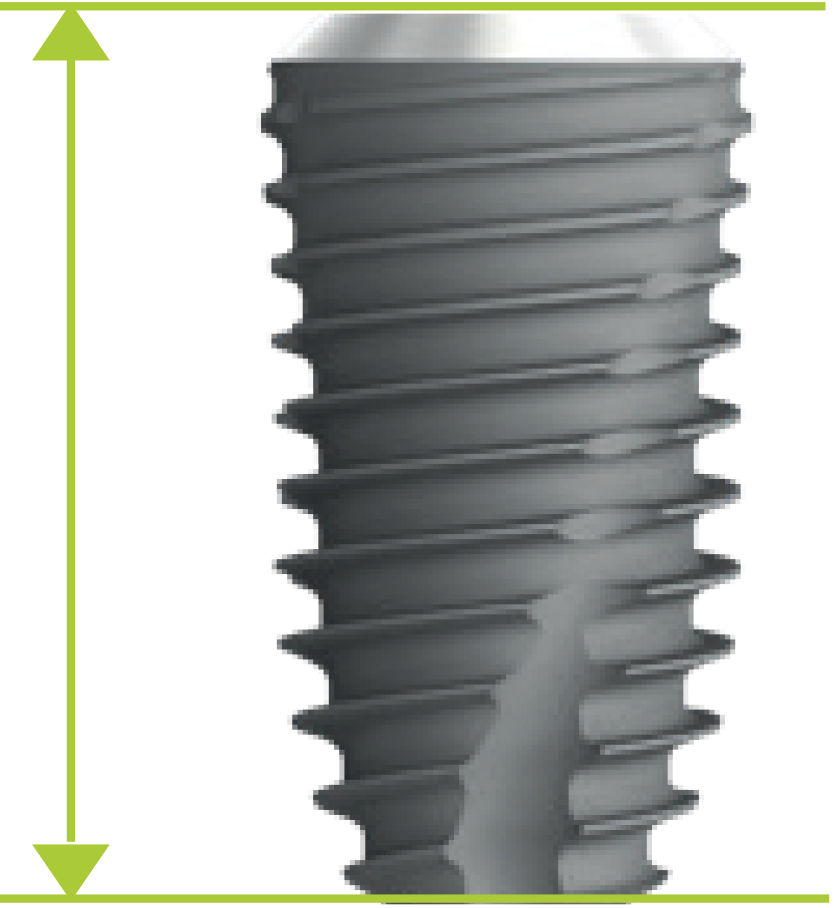

Lengths

• 8mm
• 10mm
• 12mm
• 14mm

Material

Ti-G4

Drilling Sequences

Platform: Ø3.6 / Body: Ø3.4

(1000rpm / 30~45N-cm)

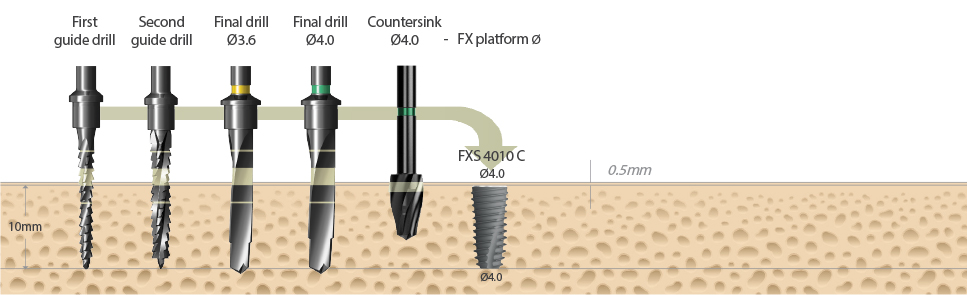

Platform: Ø4.0 / Body: Ø3.8

(1000rpm / 30~45N-cm)

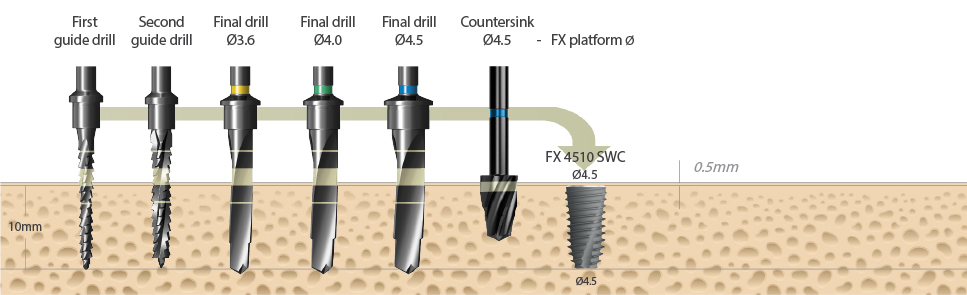

Platform: Ø4.5 / Body: Ø4.3

(1000rpm / 30~45N-cm)

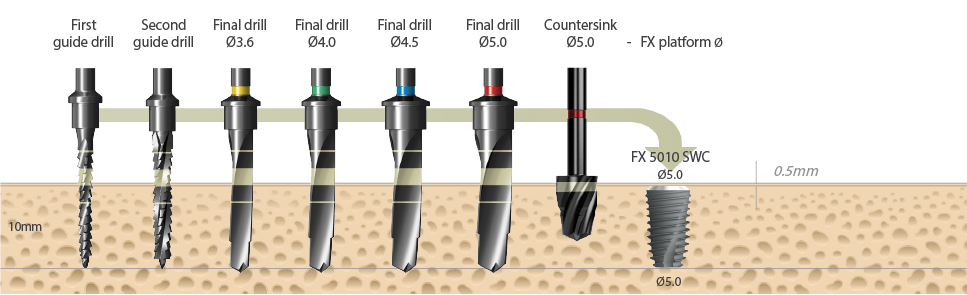

Platform: Ø5.0 / Body: Ø4.8

(1000rpm / 30~45N-cm)

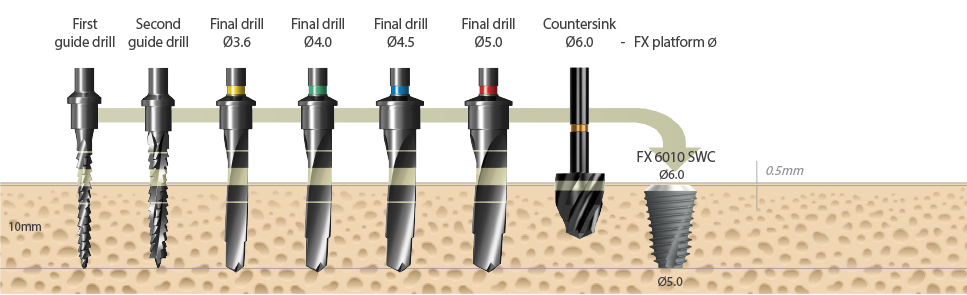

Platform: Ø6.0 / Body: Ø4.8

(1000rpm / 30~45N-cm)

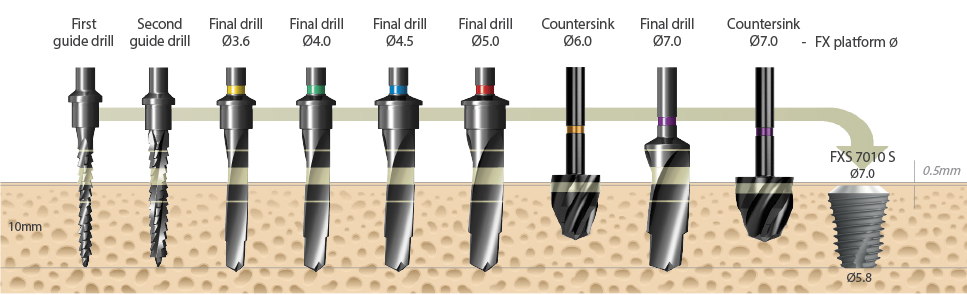

Platform: Ø7.0 / Body: Ø5.8

(1000rpm / 30~45N-cm)

Citation

Myron Nevins et al. :”Clinical and Histologic Evaluations of SLA Dental implants”

The International Journal of Periodontics & Restorative Dentistry

2017 37:175-181. doi: 10.11607/prd.3131

Read Article

The biocompatibility of SLA-treated titanium implants. Biomed. Mater.

3(2008) 025011 (6ppp)

Read Article

Clinical and Histologic Evaluations of Immediately Placed SLA Dental Implants

The International Journal of Periodontics & Restorative Dentistry

2018;38:165-170. Doi: 10.11607 / prd.3558

Read Article

Clinical and Histologic Evaluation of SLA Dental Implants.

2017;37:175-181. Doi: 10.11607 / prd.3531

Read Article

Effects of Implant Morphology on rotational Stability during immediate implant placement in the Esthetic Zone.

The International Journal of Oral & Maxillofacial Implants.

May/June 2015, 30(3):667-670 2015 DOI: 10.11607/jomi.3885

Read Article

A prospective, 1 year observational study of double-threaded tapered body dental implants with immediate loading.

The Journal of Prosthetic Dentistry.

July 2015, Volume 114, Issue 1, Pages 46-51

Read Article

Comparison of Clinical and Radiographic Outcomes of Platform-Switched Implants with a Rough Collar and Platform-Matched Implants with a Smooth Collar: A 1-Year Randomized Clinical Trial.

Int J Oral Maxillofac Implants

2016;31:382-390. Doi: 10.11607/jomi.4189

Read Article
